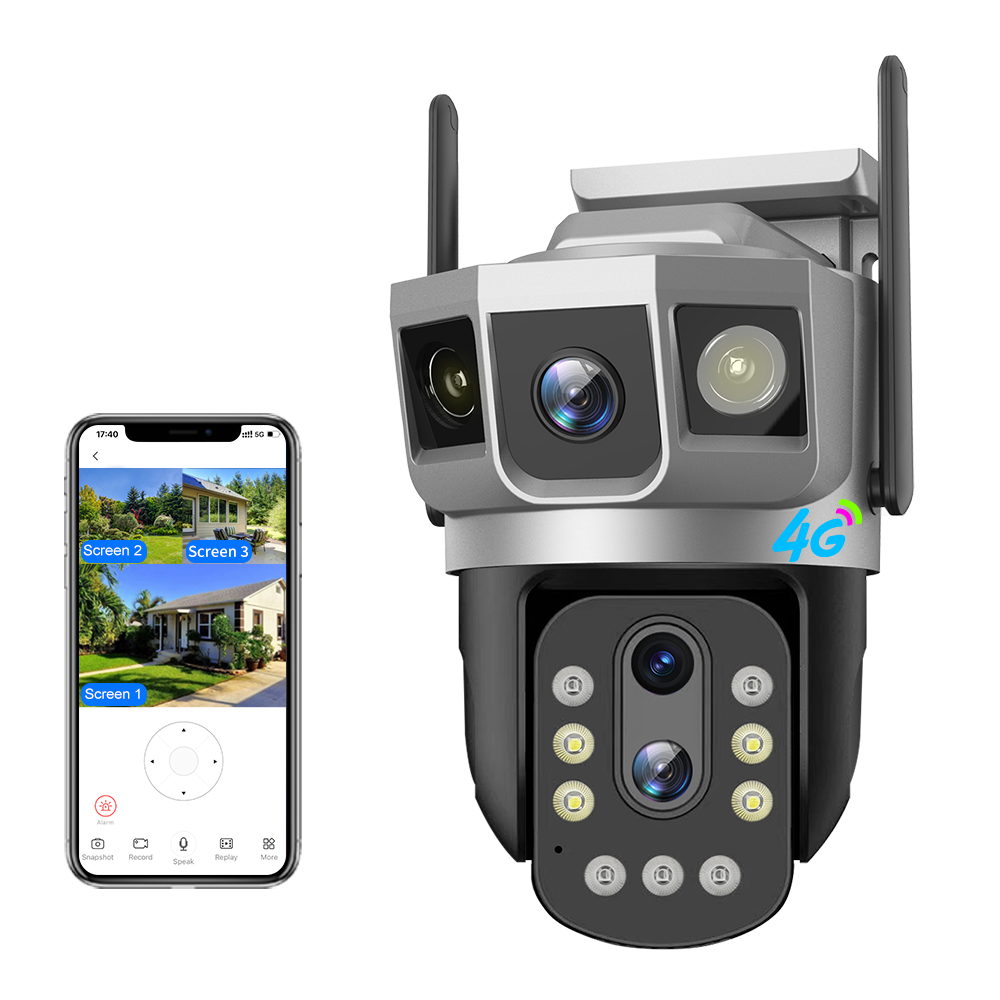

The VRT-SC23-DL is a dual-lens 10X optical zoom 4G/Wi-Fi PTZ camera built for advanced surveillance with flexible coverage. Powered by an embedded Linux ARM system and managed via the V380 Pro App, users can remotely access live view, PTZ control, playback, and receive instant alerts on Android and iOS devices.

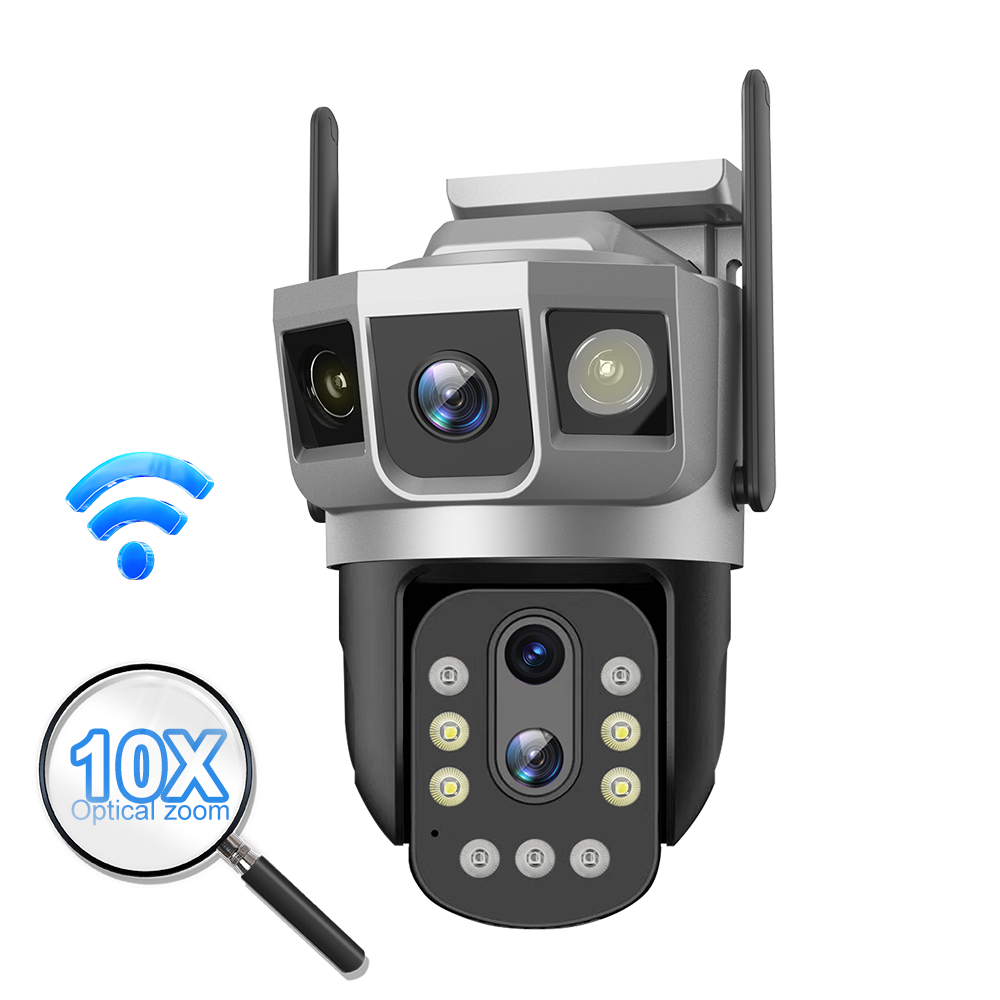

Equipped with dual 1/2.9" SC2336 sensors, the camera produces a total of 4MP resolution (2MP + 2MP). Its lens configuration includes a fixed-focus 2.8mm lens, an 8mm lens, and a 3.6mm lens, allowing wide-angle coverage combined with motorized 10X optical zoom for precise monitoring of distant objects.

The pan-tilt system supports 355° horizontal and 90° vertical rotation, with 6 preset viewing points for fast repositioning. This combination of PTZ and optical zoom ensures detailed surveillance of entrances, parking lots, yards, warehouses, and large interior spaces.

For night monitoring, the camera uses IR-CUT automatic switching with LED illumination:

• Bullet camera: 2 dual-core LEDs

• PTZ camera: 4 white LEDs + 5 infrared LEDs

White LEDs can be controlled via the app in ON, OFF, or Auto mode. In Auto mode, the system detects human presence and activates the lights as needed. Night vision range reaches approximately 5–8 meters, depending on environmental conditions.

The built-in microphone and speaker enable two-way real-time audio communication. Motion detection and AI human intrusion alerts trigger instant picture push notifications, enhancing overall security.

Connectivity includes 4G SIM card support, Wi-Fi, and RJ45 LAN, allowing flexible and reliable network options. Storage supports TF cards up to 128GB and optional cloud storage.

The camera operates on 12V/2A power input (adapter not included) and functions in temperatures from -10°C to +50°C, making it suitable for both indoor and outdoor installation.

Key Features

• 4MP dual-lens camera (2MP + 2MP)

• 10X optical zoom with PTZ functionality

• H.265 video compression (15FPS)

• 4G SIM + Wi-Fi + RJ45 LAN support

• 355° horizontal / 90° vertical PTZ rotation

• 6 preset viewing points

• Two-way audio intercom with voice alarm

• Motion detection & AI human intrusion detection

• Advanced LED night vision system (IR + White LED)

• TF card support up to 128GB + Cloud storage option

• Compatible with V380 Pro App (Android & iOS)

• Suitable for Indoor & Outdoor installation

The VRT-SC23-DL is ideal for users who need a dual-lens PTZ camera with optical zoom, providing precise monitoring, flexible installation, and reliable 4G/Wi-Fi connectivity for both home and commercial security applications.
